Writing and Reading Time Series with TimeDB SDK

This notebook demonstrates:

1. Writing time series data without specifying series_id (auto-generated based on column name)

2. Reading data back and plotting with series metadata in legend

3. Writing multiple batches with the same series_id (extending a time series)

4. Discovering series by labels (e.g., filtering by turbine, site, or measurement type)

import timedb as td
import pandas as pd
import matplotlib.pyplot as plt
from datetime import datetime, timezone, timedelta

# Load environment variables (for database connection)
from dotenv import load_dotenv
load_dotenv()

True

Part 1: Two Different Time Series (Auto-Generated Series)

First, let’s create the schema and write two different time series. Each column in the DataFrame becomes a separate series with auto-generated series_id.

# Delete database schema
td.delete()

# Create database schema
td.create()

Creating database schema...
✓ Schema created successfully

# Create first time series: Wind power data (first 24 hours: 0-23)
base_time = datetime(2025, 1, 1, 0, 0, tzinfo=timezone.utc)
dates1 = [base_time + timedelta(hours=i) for i in range(24)]
df1 = pd.DataFrame({
    'valid_time': dates1,
    'wind_power': [50.0 + i * 1.5 + (i % 6) * 5 for i in range(24)]  # MW, varying pattern
})

# Insert first time series (series_id will be auto-generated)
result1 = td.insert_batch(df=df1)
print(f"✓ Inserted first time series")
print(f"  Series name -> series_id mapping: {result1.series_ids}")
print(f"  Time range: {dates1[0]} to {dates1[-1]}")
print(f"  Value range: {df1['wind_power'].min():.1f} - {df1['wind_power'].max():.1f} MW")

Data values inserted successfully.
✓ Inserted first time series
  Series name -> series_id mapping: {'wind_power': UUID('ae0ccfab-41a8-4ec4-90d5-9f88190dca1e')}
  Time range: 2025-01-01 00:00:00+00:00 to 2025-01-01 23:00:00+00:00
  Value range: 50.0 - 109.5 MW

# Create second time series: Solar power data (next 24 hours: 24-47)
dates2 = [base_time + timedelta(hours=i) for i in range(24, 48)]  # Hours 24-47
# Solar has day/night pattern - peak at noon (hour 12 and 36)
df2 = pd.DataFrame({
    'valid_time': dates2,
    'solar_power': [max(0, 30.0 * (1 - abs((i % 24) - 12) / 12)) for i in range(24, 48)]  # MW, peaks at noon
})

# Insert second time series (series_id will be auto-generated)
result2 = td.insert_batch(df=df2)
print(f"✓ Inserted second time series")
print(f"  Series name -> series_id mapping: {result2.series_ids}")
print(f"  Time range: {dates2[0]} to {dates2[-1]}")
print(f"  Value range: {df2['solar_power'].min():.1f} - {df2['solar_power'].max():.1f} MW")

Data values inserted successfully.
✓ Inserted second time series
  Series name -> series_id mapping: {'solar_power': UUID('07a85687-17fc-445b-ad7b-a296b58aedcc')}
  Time range: 2025-01-02 00:00:00+00:00 to 2025-01-02 23:00:00+00:00
  Value range: 0.0 - 30.0 MW

# Read back all time series
df_read = td.read()
print(f"✓ Read {len(df_read)} rows")
print(f"\nDataFrame shape: {df_read.shape}")
print(f"\nColumns (series): {df_read.columns.tolist()}")
print(f"\nFirst few rows:")
print(df_read.head(10))

✓ Read 48 rows

DataFrame shape: (48, 2)

Columns (series): ['solar_power', 'wind_power']

First few rows:
name                       solar_power  wind_power
valid_time
2025-01-01 00:00:00+00:00          nan        50.0
2025-01-01 01:00:00+00:00          nan        56.5
2025-01-01 02:00:00+00:00          nan        63.0
2025-01-01 03:00:00+00:00          nan        69.5
2025-01-01 04:00:00+00:00          nan        76.0
2025-01-01 05:00:00+00:00          nan        82.5
2025-01-01 06:00:00+00:00          nan        59.0
2025-01-01 07:00:00+00:00          nan        65.5
2025-01-01 08:00:00+00:00          nan        72.0
2025-01-01 09:00:00+00:00          nan        78.5

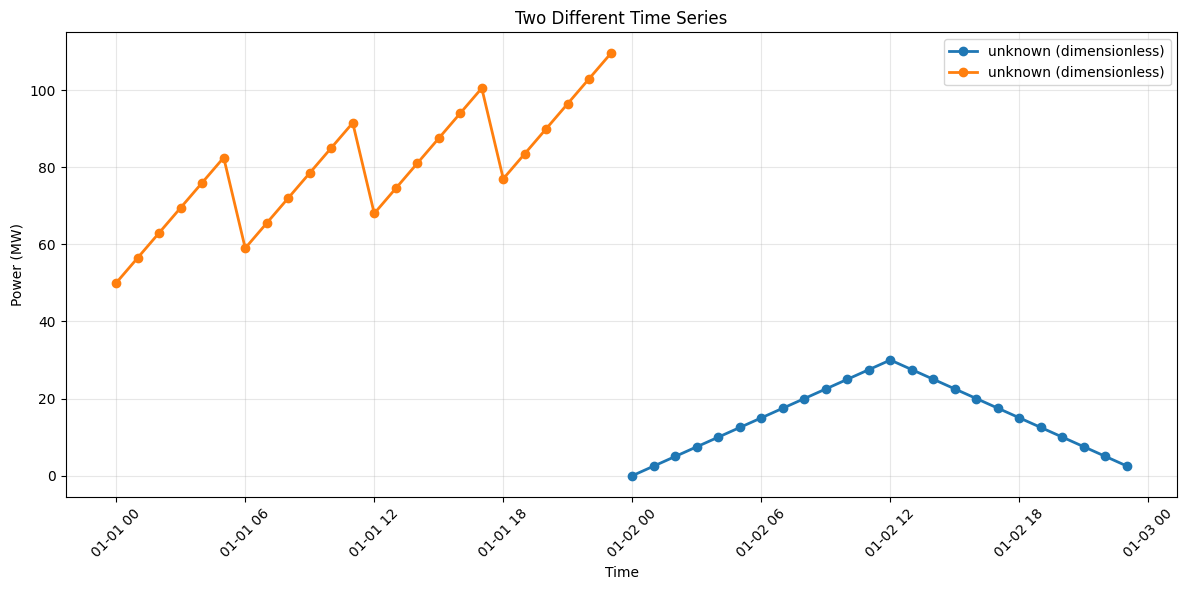

# Plot the time series
plt.figure(figsize=(12, 6))
for series_id in df_read.columns:
    # Get series metadata to use in legend
    name = df_read[series_id].attrs.get('name', 'unknown')
    unit = df_read[series_id].attrs.get('unit', 'dimensionless')

    # Extract numeric values (handle both plain floats and Pint quantities)
    values = df_read[series_id]
    try:
        # Try to extract magnitudes if Pint quantities
        plot_values = values.apply(lambda v: v.magnitude if hasattr(v, 'magnitude') and pd.notna(v) else (float('nan') if pd.isna(v) else v))
    except:
        # Fallback to raw values
        plot_values = values

    plt.plot(df_read.index, plot_values, marker='o', label=f'{name} ({unit})', linewidth=2)

plt.xlabel('Time')
plt.ylabel('Power (MW)')
plt.title('Two Different Time Series')
plt.legend()
plt.grid(True, alpha=0.3)
plt.xticks(rotation=45)
plt.tight_layout()
plt.show()

print(f"\n✓ Plotted {len(df_read.columns)} different time series")

✓ Plotted 2 different time series

Part 2: Explicit Series IDs (Consolidated Time Series)

Now let’s create a series with explicit metadata (name, unit, labels) and use the same series_id for multiple writes. This demonstrates how to extend a time series over time.

# Delete schema to start fresh
td.delete()

# Create schema again
td.create()

Creating database schema...
✓ Schema created successfully

# Create a series with explicit metadata
import uuid

# Create a series with name, unit, and labels
shared_series_id = td.create_series(
    name='wind_power',
    unit='MW',
    labels={'turbine': 'T01', 'site': 'Site_A'},
    description='Wind power output from turbine T01 at Site A'
)
print(f"Created series with ID: {shared_series_id}")
print(f"  name='wind_power', unit='MW'")
print(f"  labels={{'turbine': 'T01', 'site': 'Site_A'}}")

Created series with ID: 1b7b1f04-b466-41e2-800e-0af2a5375f33
  name='wind_power', unit='MW'
  labels={'turbine': 'T01', 'site': 'Site_A'}

# Insert first batch of data with explicit series_id
df_batch1 = pd.DataFrame({
    'valid_time': dates1,
    'wind_power': [45.0 + i * 1.2 for i in range(24)]  # Gradual increase
})

result1 = td.insert_batch(df=df_batch1, series_ids={'wind_power': shared_series_id})
print(f"✓ Inserted first batch with series_id: {result1.series_ids['wind_power']}")
print(f"  Time range: {dates1[0]} to {dates1[-1]}")
print(f"  Value range: {df_batch1['wind_power'].min():.1f} - {df_batch1['wind_power'].max():.1f} MW")

Data values inserted successfully.
✓ Inserted first batch with series_id: 1b7b1f04-b466-41e2-800e-0af2a5375f33
  Time range: 2025-01-01 00:00:00+00:00 to 2025-01-01 23:00:00+00:00
  Value range: 45.0 - 72.6 MW

# Prepare second batch of data for the same series
df_batch2 = pd.DataFrame({
    'valid_time': dates2,
    'wind_power': [52.0 + i * 0.8 for i in range(24)]  # Different pattern
})

# Insert second batch with the SAME series_id
result2 = td.insert_batch(df=df_batch2, series_ids={'wind_power': shared_series_id})
print(f"✓ Inserted second batch with series_id: {result2.series_ids['wind_power']}")
print(f"  Time range: {dates2[0]} to {dates2[-1]}")
print(f"  Value range: {df_batch2['wind_power'].min():.1f} - {df_batch2['wind_power'].max():.1f} MW")
print(f"  Same series_id: {result1.series_ids['wind_power'] == result2.series_ids['wind_power']}")
print(f"  → The two batches are consolidated into one continuous time series!")

Data values inserted successfully.
✓ Inserted second batch with series_id: 1b7b1f04-b466-41e2-800e-0af2a5375f33
  Time range: 2025-01-02 00:00:00+00:00 to 2025-01-02 23:00:00+00:00
  Value range: 52.0 - 70.4 MW
  Same series_id: True
  → The two batches are consolidated into one continuous time series!

# Read back the consolidated time series
df_read = td.read()
print(f"✓ Read {len(df_read)} rows")
print(f"\nDataFrame shape: {df_read.shape}")
print(f"\nColumns (series_ids): {df_read.columns.tolist()}")
print(f"\nFirst few rows:")
print(df_read.head(10))
print(f"\nLast few rows:")
print(df_read.tail(10))

✓ Read 48 rows

DataFrame shape: (48, 1)

Columns (series_ids): ['wind_power']

First few rows:
name                       wind_power
valid_time
2025-01-01 00:00:00+00:00        45.0
2025-01-01 01:00:00+00:00        46.2
2025-01-01 02:00:00+00:00        47.4
2025-01-01 03:00:00+00:00        48.6
2025-01-01 04:00:00+00:00        49.8
2025-01-01 05:00:00+00:00        51.0
2025-01-01 06:00:00+00:00        52.2
2025-01-01 07:00:00+00:00        53.4
2025-01-01 08:00:00+00:00        54.6
2025-01-01 09:00:00+00:00        55.8

Last few rows:
name                       wind_power
valid_time
2025-01-02 14:00:00+00:00        63.2
2025-01-02 15:00:00+00:00        64.0
2025-01-02 16:00:00+00:00        64.8
2025-01-02 17:00:00+00:00        65.6
2025-01-02 18:00:00+00:00        66.4
2025-01-02 19:00:00+00:00        67.2
2025-01-02 20:00:00+00:00        68.0
2025-01-02 21:00:00+00:00        68.8
2025-01-02 22:00:00+00:00        69.6
2025-01-02 23:00:00+00:00        70.4

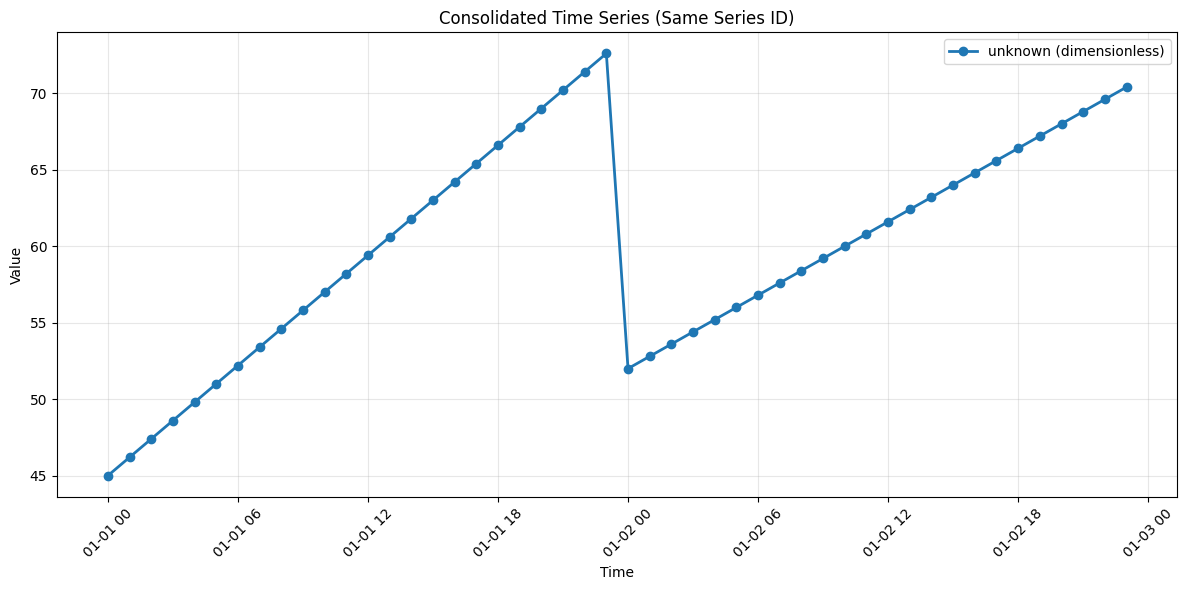

# Plot the consolidated time series
plt.figure(figsize=(12, 6))
for series_id in df_read.columns:
    # Get series metadata from attrs
    name = df_read[series_id].attrs.get('name', 'unknown')
    unit = df_read[series_id].attrs.get('unit', 'dimensionless')
    labels = df_read[series_id].attrs.get('labels', {})

    # Build a descriptive label
    label_str = ', '.join([f"{k}={v}" for k, v in labels.items()])
    legend_label = f'{name} ({unit}) [{label_str}]' if label_str else f'{name} ({unit})'

    # Extract numeric values (handle both plain floats and Pint quantities)
    values = df_read[series_id]
    try:
        # Try to extract magnitudes if Pint quantities
        plot_values = values.apply(lambda v: v.magnitude if hasattr(v, 'magnitude') and pd.notna(v) else (float('nan') if pd.isna(v) else v))
    except:
        # Fallback to raw values
        plot_values = values

    plt.plot(df_read.index, plot_values, marker='o', label=legend_label, linewidth=2)

plt.xlabel('Time')
plt.ylabel('Value')
plt.title('Consolidated Time Series (Same Series ID)')
plt.legend()
plt.grid(True, alpha=0.3)
plt.xticks(rotation=45)
plt.tight_layout()
plt.show()

print(f"\n✓ Plotted {len(df_read.columns)} time series")
print(f"  Both batches used the same series_id → one consolidated time series spanning 48 hours")

✓ Plotted 1 time series
  Both batches used the same series_id → one consolidated time series spanning 48 hours

Part 3: Discovering Series with get_mapping()

The new get_mapping() function allows you to discover series based on their metadata (name, unit, labels). Let’s create multiple series with different labels to demonstrate various filtering capabilities.

# First, let's create a fresh database with multiple series
td.delete()
td.create()

# Create multiple series with different labels
series_configs = [
    # Wind turbines at different sites
    {'name': 'wind_power', 'unit': 'MW', 'labels': {'turbine': 'T01', 'site': 'Site_A', 'type': 'wind'}},
    {'name': 'wind_power', 'unit': 'MW', 'labels': {'turbine': 'T02', 'site': 'Site_A', 'type': 'wind'}},
    {'name': 'wind_power', 'unit': 'MW', 'labels': {'turbine': 'T01', 'site': 'Site_B', 'type': 'wind'}},
    {'name': 'wind_power', 'unit': 'MW', 'labels': {'turbine': 'T02', 'site': 'Site_B', 'type': 'wind'}},

    # Solar installations
    {'name': 'solar_power', 'unit': 'MW', 'labels': {'panel_id': 'P01', 'site': 'Site_A', 'type': 'solar'}},
    {'name': 'solar_power', 'unit': 'MW', 'labels': {'panel_id': 'P02', 'site': 'Site_B', 'type': 'solar'}},

    # Temperature sensors
    {'name': 'temperature', 'unit': 'degC', 'labels': {'sensor': 'S01', 'site': 'Site_A'}},
    {'name': 'temperature', 'unit': 'degC', 'labels': {'sensor': 'S02', 'site': 'Site_B'}},
]

# Create all series and store their IDs
series_ids = {}
for config in series_configs:
    series_id = td.create_series(
        name=config['name'],
        unit=config['unit'],
        labels=config['labels'],
        description=f"{config['name']} at {config['labels'].get('site', 'unknown')}"
    )
    key = f"{config['name']}_{list(config['labels'].values())[0]}"
    series_ids[key] = series_id

print(f"✓ Created {len(series_ids)} series with various labels")
print(f"  Wind power series: {sum(1 for k in series_ids if 'wind_power' in k)}")
print(f"  Solar power series: {sum(1 for k in series_ids if 'solar_power' in k)}")
print(f"  Temperature series: {sum(1 for k in series_ids if 'temperature' in k)}")

Creating database schema...
✓ Schema created successfully
✓ Created 6 series with various labels
  Wind power series: 2
  Solar power series: 2
  Temperature series: 2

# Example 1: Get ALL series in the database
all_series = td.get_mapping()
print(f"1. All series in database: {len(all_series)}")
for label_set, series_id in all_series.items():
    labels = dict(label_set)
    print(f"   {labels} -> {series_id}")

1. All series in database: 8
   {'type': 'solar', 'panel_id': 'P02', 'site': 'Site_B'} -> bf88bdeb-ea0e-4492-b389-06080fa3c57b
   {'type': 'solar', 'panel_id': 'P01', 'site': 'Site_A'} -> eafad25c-bfdf-4457-b1c7-035620722be4
   {'sensor': 'S01', 'site': 'Site_A'} -> 016152e8-075c-48c3-ab3e-279811acee6a
   {'site': 'Site_B', 'sensor': 'S02'} -> 97f6ae5f-2081-4e95-924b-acdb2726f7eb
   {'type': 'wind', 'turbine': 'T02', 'site': 'Site_B'} -> 1dd7b87d-1da1-45a8-bc7e-4d344e53811a
   {'type': 'wind', 'site': 'Site_A', 'turbine': 'T01'} -> 71008a23-4b0e-41ea-bd43-801abb74996a
   {'type': 'wind', 'site': 'Site_A', 'turbine': 'T02'} -> 89496bd2-7a71-4cc7-aacc-3a05de6f78a6
   {'type': 'wind', 'turbine': 'T01', 'site': 'Site_B'} -> ea912f83-84d0-4e8b-8c52-b59a979ae40f

# Example 2: Filter by name (all wind power series)
wind_series = td.get_mapping(name='wind_power')
print(f"\n2. All wind_power series: {len(wind_series)}")
for label_set, series_id in wind_series.items():
    labels = dict(label_set)
    print(f"   Turbine {labels['turbine']} at {labels['site']} -> {series_id}")

2. All wind_power series: 4
   Turbine T02 at Site_B -> 1dd7b87d-1da1-45a8-bc7e-4d344e53811a
   Turbine T01 at Site_A -> 71008a23-4b0e-41ea-bd43-801abb74996a
   Turbine T02 at Site_A -> 89496bd2-7a71-4cc7-aacc-3a05de6f78a6
   Turbine T01 at Site_B -> ea912f83-84d0-4e8b-8c52-b59a979ae40f

# Example 3: Filter by single label (all series at Site_A)
site_a_series = td.get_mapping(label_filter={'site': 'Site_A'})
print(f"\n3. All series at Site_A: {len(site_a_series)}")
for label_set, series_id in site_a_series.items():
    labels = dict(label_set)
    print(f"   {labels} -> {series_id}")

3. All series at Site_A: 4
   {'type': 'solar', 'panel_id': 'P01', 'site': 'Site_A'} -> eafad25c-bfdf-4457-b1c7-035620722be4
   {'sensor': 'S01', 'site': 'Site_A'} -> 016152e8-075c-48c3-ab3e-279811acee6a
   {'type': 'wind', 'site': 'Site_A', 'turbine': 'T01'} -> 71008a23-4b0e-41ea-bd43-801abb74996a
   {'type': 'wind', 'site': 'Site_A', 'turbine': 'T02'} -> 89496bd2-7a71-4cc7-aacc-3a05de6f78a6

# Example 4: Filter by label value (all wind type series)
wind_type_series = td.get_mapping(label_filter={'type': 'wind'})
print(f"\n4. All series with type='wind': {len(wind_type_series)}")
for label_set, series_id in wind_type_series.items():
    labels = dict(label_set)
    print(f"   {labels['turbine']} at {labels['site']} -> {series_id}")

4. All series with type='wind': 4
   T02 at Site_B -> 1dd7b87d-1da1-45a8-bc7e-4d344e53811a
   T01 at Site_A -> 71008a23-4b0e-41ea-bd43-801abb74996a
   T02 at Site_A -> 89496bd2-7a71-4cc7-aacc-3a05de6f78a6
   T01 at Site_B -> ea912f83-84d0-4e8b-8c52-b59a979ae40f

# Example 5: Filter by multiple labels (turbine T01 at Site_A)
specific_turbine = td.get_mapping(label_filter={'turbine': 'T01', 'site': 'Site_A'})
print(f"\n5. Series matching turbine='T01' AND site='Site_A': {len(specific_turbine)}")
for label_set, series_id in specific_turbine.items():
    labels = dict(label_set)
    print(f"   Full labels: {labels}")
    print(f"   Series ID: {series_id}")

5. Series matching turbine='T01' AND site='Site_A': 1
   Full labels: {'type': 'wind', 'site': 'Site_A', 'turbine': 'T01'}
   Series ID: 71008a23-4b0e-41ea-bd43-801abb74996a

# Example 6: Combine name + unit + labels for exact match
exact_match = td.get_mapping(
    name='wind_power',
    unit='MW',
    label_filter={'turbine': 'T01', 'site': 'Site_A', 'type': 'wind'}
)
print(f"\n6. Exact match (wind_power in MW, turbine T01 at Site_A): {len(exact_match)}")
for label_set, series_id in exact_match.items():
    labels = dict(label_set)
    print(f"   Full labels: {labels}")
    print(f"   Series ID: {series_id}")
    print(f"   ✓ This uniquely identifies one specific series")

6. Exact match (wind_power in MW, turbine T01 at Site_A): 1
   Full labels: {'type': 'wind', 'site': 'Site_A', 'turbine': 'T01'}
   Series ID: 71008a23-4b0e-41ea-bd43-801abb74996a
   ✓ This uniquely identifies one specific series
